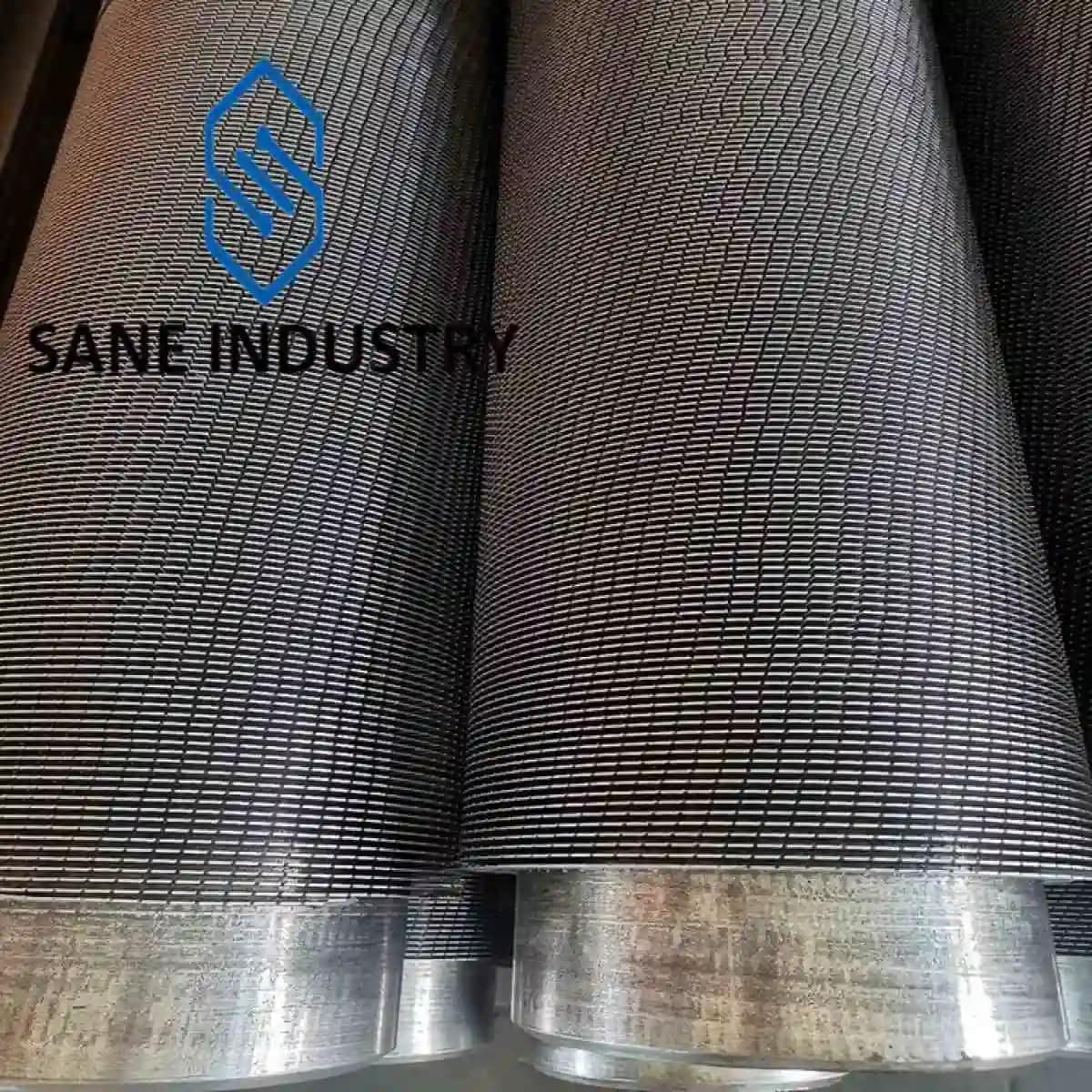

Why Serrated Finned Tubes Beat Solid Finned Tubes in Heat Exchangers? (The Advantages)
Traditional smooth tubes and solid fin tubes suffer from low heat transfer coefficients and rapid fouling in gas-side applications. Serrated welded finned tubes solve this through four engineered advantages:
-
22–37% Higher Heat Transfer Coefficient
- Serrated fins disrupt laminar boundary layers and generate controlled vortices, significantly enhancing convective heat transfer compared to smooth or solid fins. Experimental studies on staggered tube bundles show serrated designs achieve peak thermal performance when transversal and diagonal flow areas are balanced — a structural advantage solid fins cannot replicate.
-
15–25% Lower Pressure Drop Across Tube Bundles
- Unlike solid fins that create uniform flow resistance, serrated geometry allows for optimized flow channeling. This reduces frictional losses without sacrificing surface area — critical in high-flow industrial systems like oil & gas heat exchangers where pump energy costs dominate lifecycle expenses.
-
Superior Fouling Resistance & Easy Cleaning
- The jagged profile of serrated fins prevents particulate buildup and enables high-velocity CIP (Clean-in-Place) fluids to flush debris from crevices. In contrast, solid fins trap scale and sludge, leading to costly downtime. Oil & gas operators report 40% longer maintenance cycles with serrated welded finned tubes.
-
Greater Fin Heights Compared to Solid Fin Tubes
- Serrated welded finned tubes enable significantly greater fin heights compared to solid fin tubes due to the discontinuous, stepped geometry of the serrated profile, which effectively redistributes mechanical stress and reduces aerodynamic loading along the fin length. Unlike continuous solid fins that are prone to buckling or detachment under high fluid velocities or thermal expansion, the serrated design introduces natural stress-relief points at each cut, enhancing structural integrity while maximizing surface area.
Technical Data Sheet of Our High Frequency Welded Serrated Finned Tubes
| Base Tube Diameter | 16 to 350 mm | 3/8″ to 14″ NPS |
| Base Tube Wall Thickness | 2 to 30 mm | 0.08″ to 1.18″ |
| Base Tube Length | ≤32,000 mm | ≤92 ft |
| Base Tube Material | Carbon Steel (ASTM A106B, EN 10216-2 P235GH, ASTM A179, ASTM A210, ASTM A192, etc.)
Alloy Steel (ASTM A335 or ASTM A213 P5, T5, P9, T9, T11, T22, etc.) Stainless Steel (ASTM A213 or ASTM A312 TP304, TP316, TP347, B407 800H/HT, etc.) |
|
| Fin Pitch | 39 to 277 FPM | 1 to 7 FPI |
| Fin Height | 8 to 35 mm | 0.31″ to 1.38″ |
| Fin Thickness | 0.5 to 3 mm | 0.02″ to 0.12″ |
| Fin Material | Carbon Steel, 2.25Cr-1Mo, 5Cr-0.5Mo, 11-13Cr (409, 410), 18Cr-8Ni (SS 304), 25Cr-20Ni, aluminum | |
| Fin Type | “U” or “V” Serrated | |
For other customized requirements for serrated fin tubes, please contact us via allen@sanesteel.com.
Applications of Our High Frequency Welded Serrated Finned Tubes
-
Power Plant HRSG Boilers
- Serrated welded finned tubes are used in Heat Recovery Steam Generators to capture waste heat from gas turbine exhausts. Serrated fins prevent ash accumulation in flue gas streams, maintaining >90% heat transfer efficiency over 10+ years of continuous operation. Systems using these serrated fin tubes report 15–20% improvement in thermal efficiency and up to 30% reduction in fuel consumption compared to smooth-tube designs.
-
Oil & Gas Refineries – Heat Recovery Systems
- Serrated fin tubes are deployed in crude preheaters, fractionator condensers, and reboilers where high-temperature hydrocarbons and corrosive sulfur compounds are present. The HFW bond ensures structural integrity under cyclic thermal loads, reducing maintenance downtime by up to 40%. Proven in projects at Middle Eastern and North American refineries with operating temperatures exceeding 450°C.
-
Chemical Processing – Reactor Cooling & Condensers
- Ideal for exothermic reaction cooling and vapor condensation in petrochemical plants. The serrated profile enhances turbulence on the shell side, improving heat transfer coefficients by 25–35% versus plain tubes. Compatible with Hastelloy, stainless steel (ASTM A312 TP304H/316L), and carbon steel (ASTM A106) base tubes for aggressive chemical environments.
-
LNG & Cryogenic Plants – Cold Box Heat Exchangers
- Engineered for low-temperature service down to -160°C. The welded serrated fin structure resists embrittlement and thermal contraction mismatch, ensuring leak-free performance in multi-stream cryogenic heat exchange systems.
-

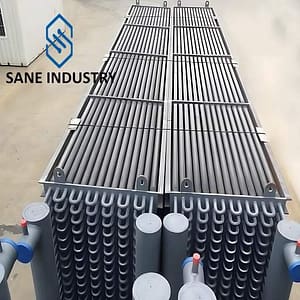

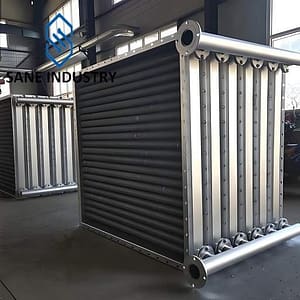

Industrial Air Coolers & Radiators
- Replaces traditional finned tubes in forced-draft air-cooled condensers (ACCs) for power plants and chemical plants. Offers superior performance in dusty, high-humidity environments due to self-cleaning fin geometry that minimizes particulate buildup.
Certifications & Quality Control of Our High Frequency Welded Serrated Finned Tubes
- ISO 9001:2015 Certified Manufacturing
- EN 10204 3.1/3.2 for tubes
- EN 10204 2.2 for fins
- Material Test Reports (MTR) available per batch
- Non-Destructive Testing (NDT): VT, UT, PT, RT, MT
- Third-party inspection by SGS, Bureau Veritas, TUV
- 12-month warranty on material and weld integrity

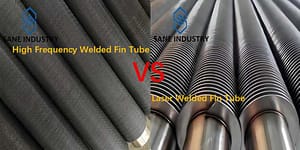

Comparison of Serrated Finned Tubes With Other Finned Tubes
| Comparison Parameter | High Frequency Welded Serrated Finned Tubes | High Frequency Welded Solid Finned Tubes | Extruded Finned Tubes | G-Embedded Finned Tubes | Laser Welded Finned Tubes |
| Fin Bonding Method | High-frequency resistance welding of serrated strip | High-frequency resistance welding of solid strip | Mechanical interlock via extrusion over base tube | Mechanical embedding of aluminum fin into groove | Precision laser fusion at fin-base interface |
| Thermal Efficiency (Relative) | ★★★★★ (Highest) | ★★★★☆ | ★★★☆☆ | ★★★★☆ | ★★★★★ |
| Fouling Resistance | ★★★★★ (Serrated edges disrupt particulate adhesion) | ★★★☆☆ (Smooth surface prone to buildup) | ★★★☆☆ (Limited by extrusion integrity) | ★★★★☆ (Good, but groove may trap debris) | ★★★★☆ (Smooth bond, moderate resistance) |
| Max Operating Pressure | Up to 150 bar (ASME B31.3 compliant) | Up to 140 bar | Up to 120 bar | Up to 160 bar (per ASME B16.5 flange ratings) | Up to 180 bar (minimal HAZ, superior joint integrity) |
| High-Temp Fatigue Life (400°C) | 8,000–10,000 cycles | 6,000–8,000 cycles | 5,000–7,000 cycles | 7,000–9,000 cycles | 12,000+ cycles (near-zero thermal stress) |
| Corrosion Resistance | Excellent (Stainless steel base + serrated geometry reduces crevice corrosion) | Good | Limited (Aluminum fin vulnerable to chlorides) | Excellent (Aluminum fin bonded to steel tube resists H₂S) | Exceptional (Inconel 625 options available; no weld porosity) |
| Manufacturing Cost | Medium | Low | Low | Medium | High |
| Installation Flexibility | High (Compatible with U-bends, helical coils) | High | Low (Brittle fin-base interface) | Medium (Limited to straight or gentle curves) | High (Thin fins allow tight bending radii) |
| Typical Applications | Waste heat boilers, HRSGs, marine condensers, high-fouling flue gas systems | Economizers, low-fouling air coolers | Low-pressure HVAC, refrigeration | High-pressure steam coils, oil & gas heat recovery | Ultra-high-efficiency power plants, nuclear, cryogenic systems |
| Total Cost of Ownership (TCO) | Lowest in high-fouling environments (reduced cleaning frequency, longer service life) | Medium | High (Frequent replacement) | Medium | Lowest overall (highest efficiency + longest lifespan) |
The Key Features of High Frequency Welded Serrated Finned Tubes
-

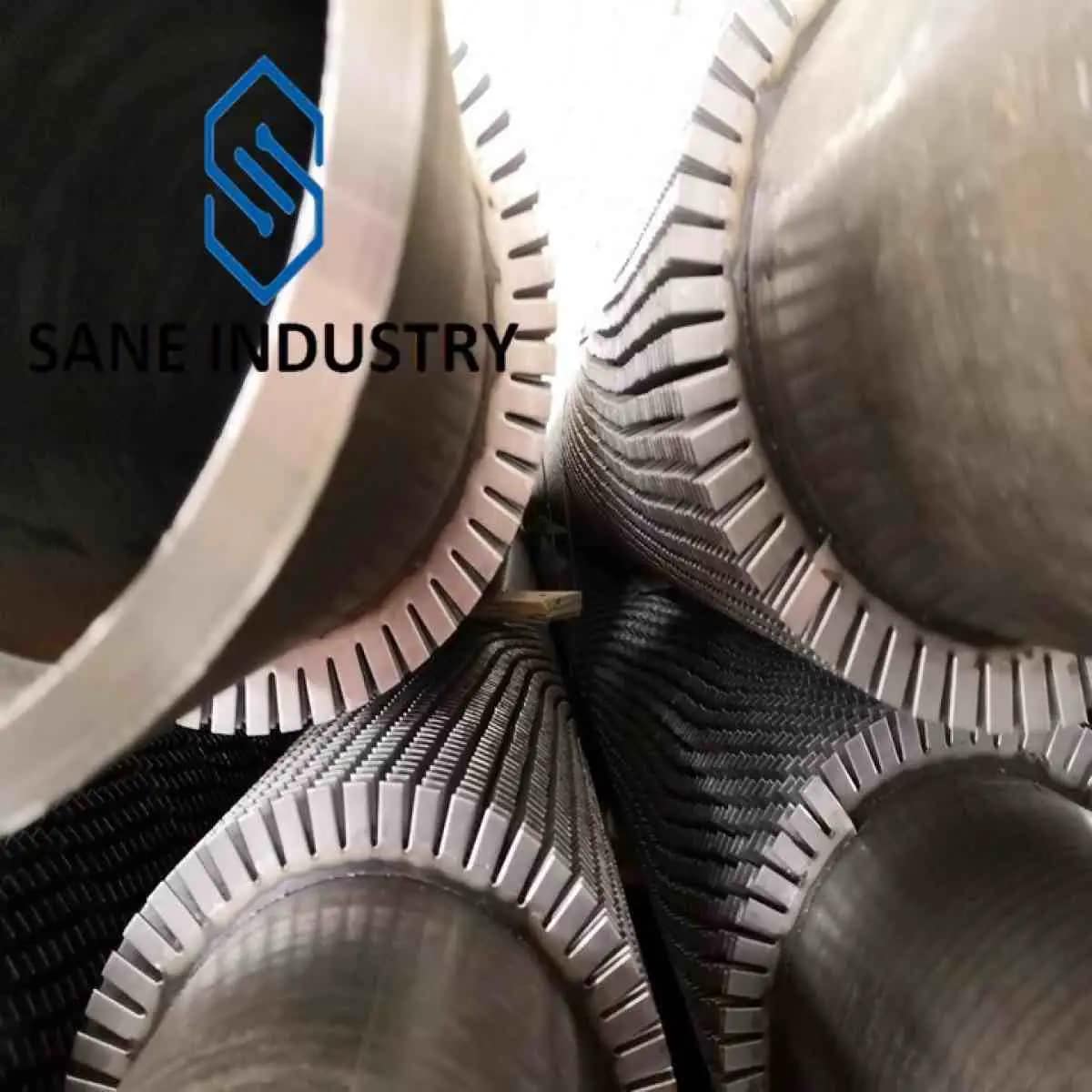

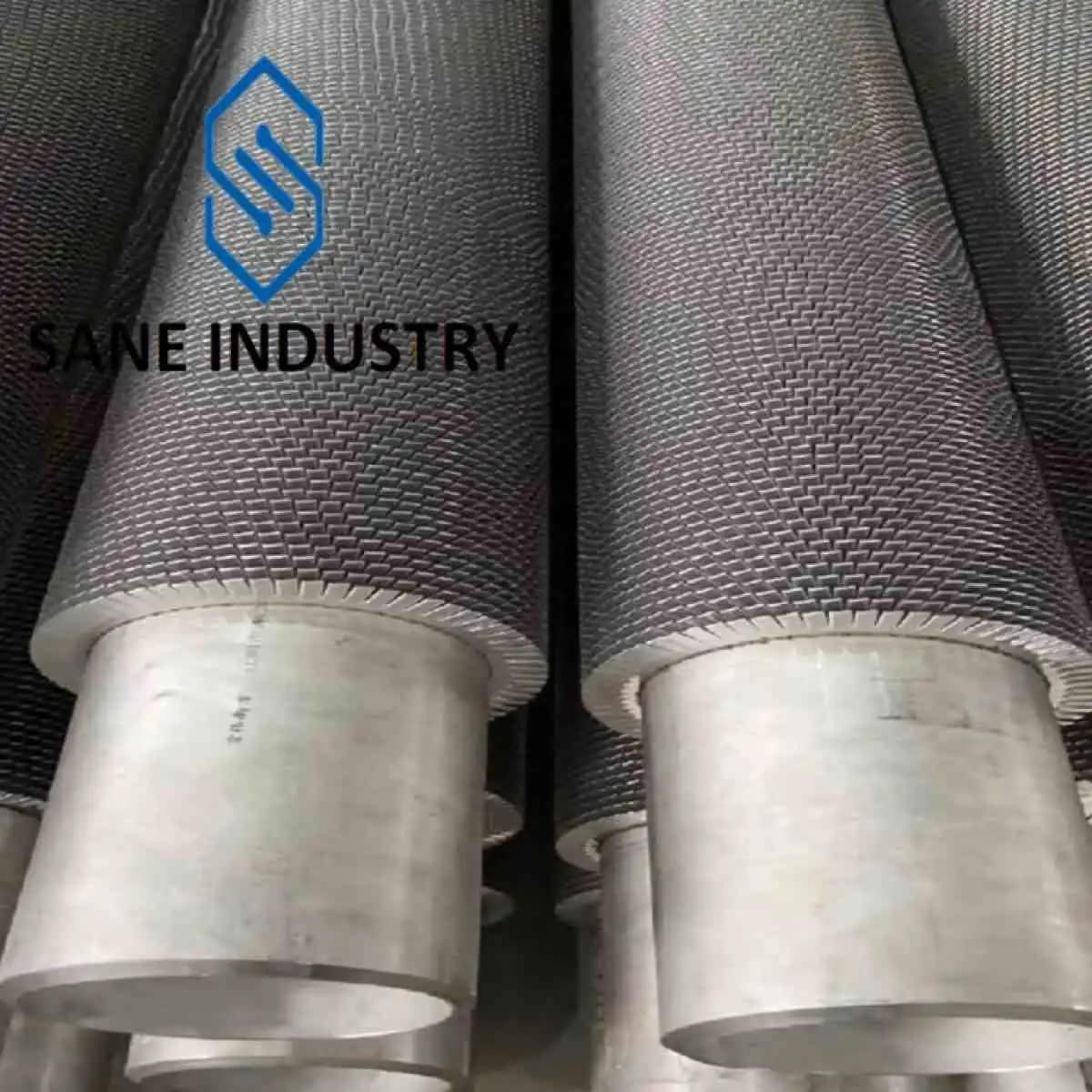

Structure:
- Base Tube:Usually carbon steel pipes, stainless steel pipes, or corrosion-resistant alloy steel pipes.
- Fins: Serrated (notched) metal strips welded to the tube surface, creating turbulence in the fluid flow.

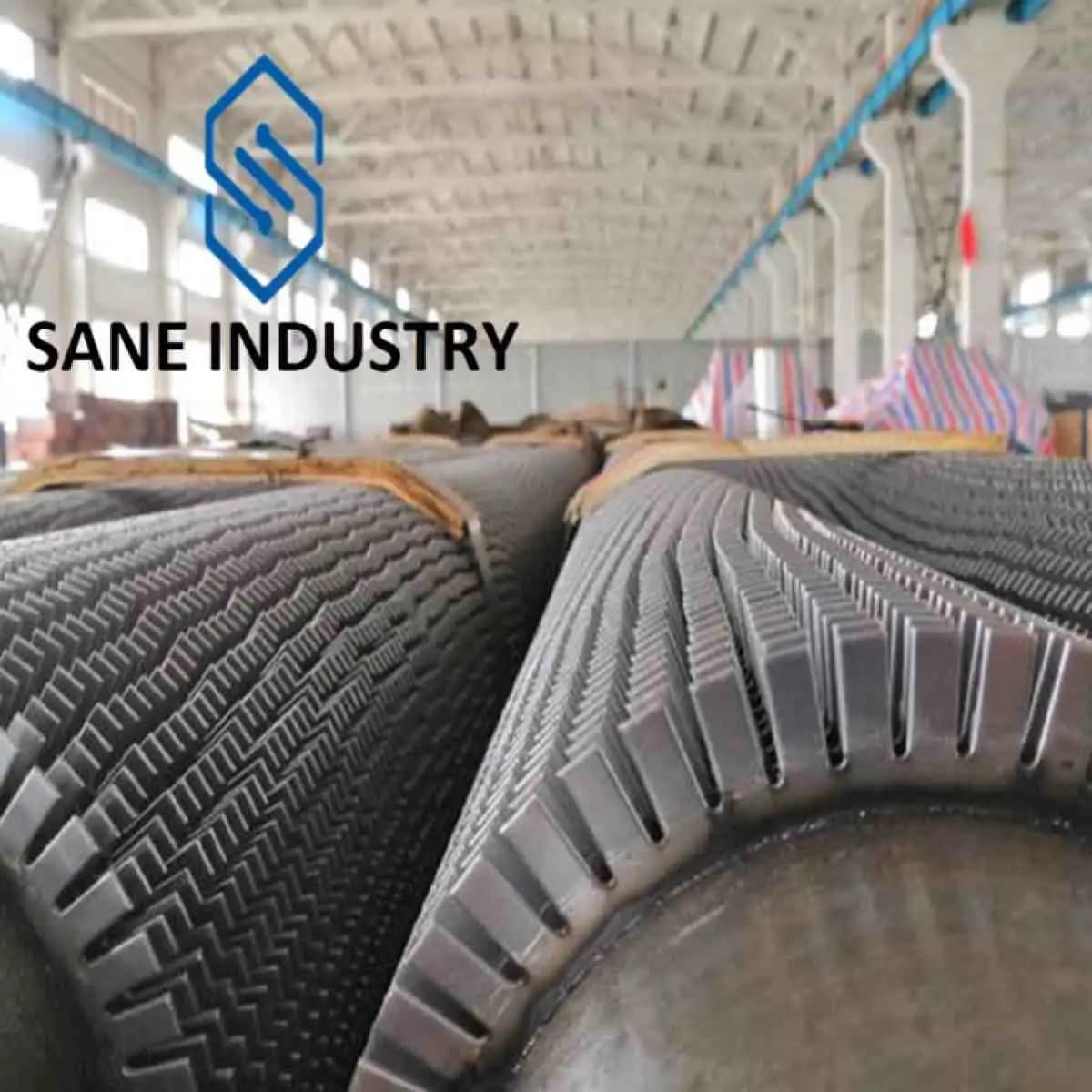

- Bonding Method: High-frequency welding creates a metallurgically fused, leak-proof joint.
-
How It Works:
- Serrated edges disrupt airflow/fluid flow, breaking the thermal boundary layer.
- This turbulence improves heat transfer rates by up to 20-30% compared to solid fins.
The Manufacturing Process of High Frequency Welded Serrated Finned Tubes
-
Material Preparation
- Base Tube Material: Typically carbon steel pipes, stainless steel pipes, or alloy steel pipes, selected based on corrosion resistance, temperature tolerance, and mechanical strength requirements.
- Fin Strip Material: Aluminum fins, copper fins, or steel strips are common. Serrated fins are precision-cut or cold-formed to create a zigzag edge, optimizing surface area and thermal performance.
- Surface Treatment: Base tubes and fin strips undergo degreasing, pickling, or sandblasting to remove oxides and contaminants, ensuring optimal weld quality.
-
Fin Formation and Alignment
- Serrated Fin Fabrication:
- Cold Forming: Fin strips pass through rolling mills or presses to create uniform serrations (teeth-like notches) along their edges.
- Laser Cutting: Advanced methods use laser systems to cut precise serrations, ensuring consistency and minimizing material waste.
- Fin Positioning: Serrated fins are helically wound or longitudinally aligned around the base tube using automated machinery. Precise spacing between fins is maintained to balance heat transfer and airflow resistance.
- Serrated Fin Fabrication:
-

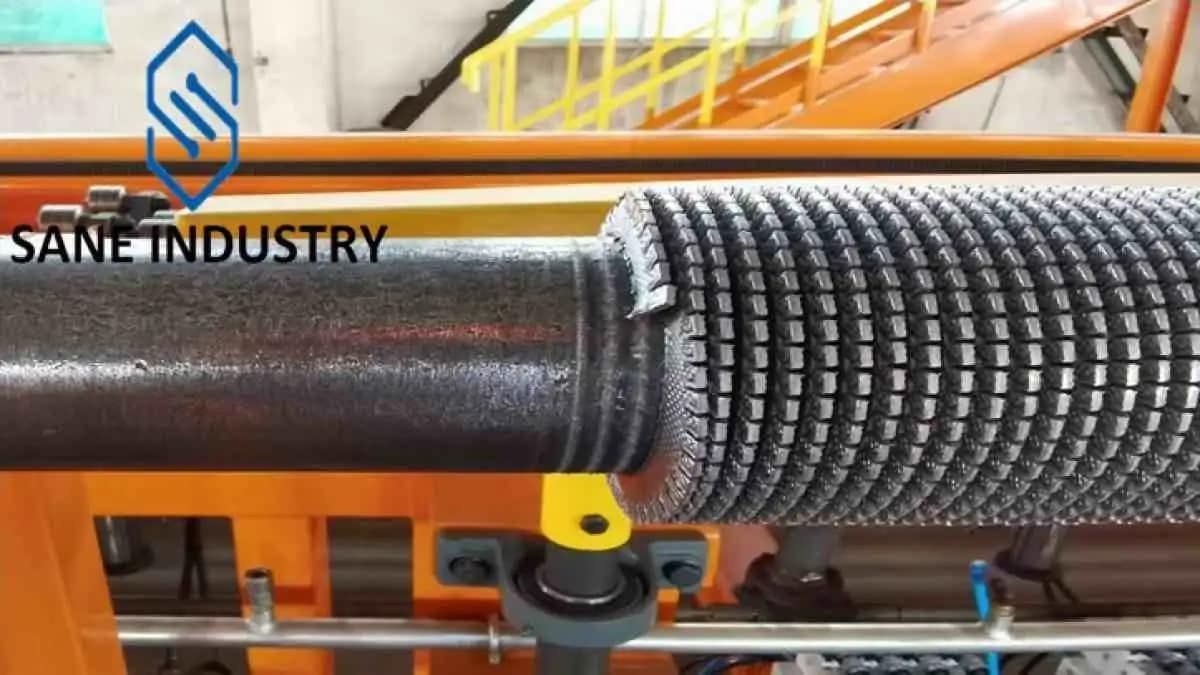

High-Frequency Welding
- Current Application: A high-frequency alternating current (100–400 kHz) is induced into the fin and tube interface, creating eddy currents that rapidly heat the metals to 1200–1400°C.
- Pressure Welding: Mechanical pressure is applied to fuse the heated fin base with the tube surface, forming a continuous, void-free weld seam.
- Cooling: Air or water quenching solidifies the weld zone, ensuring structural integrity and resistance to thermal fatigue.
-
Quality Control of Spiral Serrated Finned Tubes
- Pull-off tests verify welding strength (>200 MPa)
- Microscopic examination checks heat-affected zone depth (<0.5 mm)
- Dimensional inspections ensure fin spacing tolerance (±0.2 mm)
Maintenance Guidelines of High Frequency Welded Serrated Finned Tubes
-
Routine Inspections of Spiral Serrated Finned Tubes
- Visual checks for fin damage
- Monitoring pressure drop trends
- Thermal imaging for hot spots
-
Cleaning Methods
- Air or water blasting (gentler than for smooth fins)
- Chemical cleaning (compatible with materials)
- Avoid mechanical brushing that could damage serrations
-
Repair Options
- Spot welding for minor fin damage
- Section replacement for severe cases
- Professional assessment for critical applications
Why Choose Us
- a 16-year High Frequency Welded Serrated Finned Tube manufacturer. We are experts.
- solutions for all your fin tube needs
- the highest product quality, 12-month warranty
- the low lead times
- excellent customer service
Frequently Asked Questions (FAQs)
A High Frequency Welded Serrated Finned Tube is an industrial heat transfer component where a serrated (toothed) metal strip is helically wound around a base tube and fused using high-frequency resistance welding (HFRW). Unlike smooth or extruded fins, the serrated edge disrupts fluid flow, enhancing turbulence and heat transfer efficiency by up to 40% compared to plain finned tubes.
The key differentiator is the metallurgical bond created by HFRW — eliminating thermal resistance at the fin-tube interface. This ensures superior performance under high-pressure, high-temperature conditions common in power plants, boilers, and chemical reactors.
Yes. High-frequency welding creates a continuous metallurgical bond with: welding strength >200 MPa and welding adhesion rate >99%.
Please contact our sales manager Allen@sanesteel.com. You are sure to get the best price.
We have total four high frequency welded serrated finned tube machines, monthly production capacity is 1200 tons in total.
About 4 weeks (including engineering and production), depending on the specific quantity. Expedited options available for urgent projects.
Please see above our technical data sheet. We offer customizable material combinations to match your fluid compatibility and temperature requirements.
Serrated finned tubes increase effective surface area by 3–5x compared to bare tubes, reducing the required heat exchanger footprint. In a typical HRSG application: outlet flue gas temperature drops by 40–60°C, fuel consumption reduces by 8–12%, CO₂ emissions decrease proportionally.
12-month warranty against manufacturing defects in material or welding. Replacement policy: Defective units replaced or refunded within 30 days of receipt. We also offer third-party inspection support (SGS, BV, TÜV) upon request.
