Finned tubes, as indispensable heat exchange components in modern industry, play a crucial role in multiple fields including energy, chemical engineering, and power generation. This article provides a comprehensive introduction to the basic concepts, working principles, types and characteristics, application areas, advantages and disadvantages, as well as future development trends of finned tubes, helping readers gain an in-depth understanding of this efficient heat exchange equipment.
Basic Concepts of Finned Tubes
- Definition
Finned tubes(also known as Fin Tubes in technical terminology) are specialized heat-exchange components designed to amplify thermal efficiency by extending the surface area of base tubes through attached fins. This innovation transforms ordinary tubes into high-performance heat exchangers, making them indispensable across industries ranging from energy production to HVAC systems. Their core functions include reducing contact thermal resistance and providing corrosion and wear resistance, making them commonly used in waste heat recovery and heat exchange equipment.
- Structure
Structurally, finned tubes consist of two main parts: the base tube and the fins.
- Base Tube: The base tube serves as the channel for heat medium flow, typically made of materials such as carbon steel pipes, stainless steel pipes, or copper pipes.
- Fins: The fins are metal components attached to the outer surface of the base tube via welding, extrusion, or mechanical bonding; common shapes include spiral fins, longitudinal fins, and serrated fins. These geometries increase surface area by 5–10x compared to smooth tubes. Common materials are stainless steel, carbon steel, aluminum, copper.
A finned tube bundle, composed of multiple finned tubes arranged in a certain pattern, forms the basic unit of a heat exchanger.
Working Principles of Finned Tubes

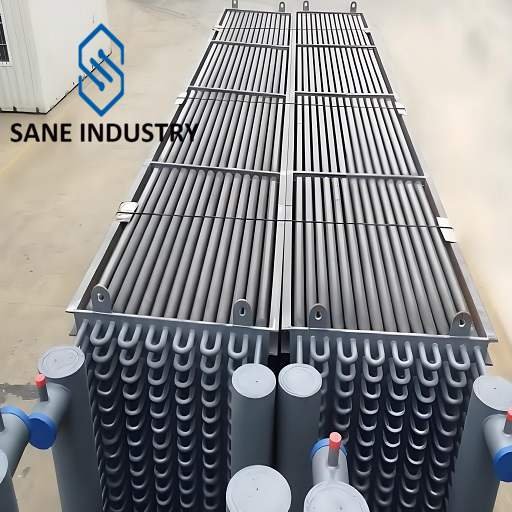

The operation of finned tube radiators is based on the synergistic effects of thermal conduction and convective heat transfer. When the heat medium (such as hot water or steam) enters the base tube, heat is first conducted through the tube wall. Since the fins are tightly connected to the base tube and are typically made of materials with good thermal conductivity, heat from the tube wall can quickly transfer to the fins.
The key role of fins is to significantly increase the surface area in contact with the surrounding air. Heat is exchanged between the fins and the air, which absorbs heat and increases in temperature. The heated air naturally rises, and cooler air from the surroundings replaces it, forming a natural air convection cycle. This convective process continuously transfers heat to a broader area, raising the ambient temperature.

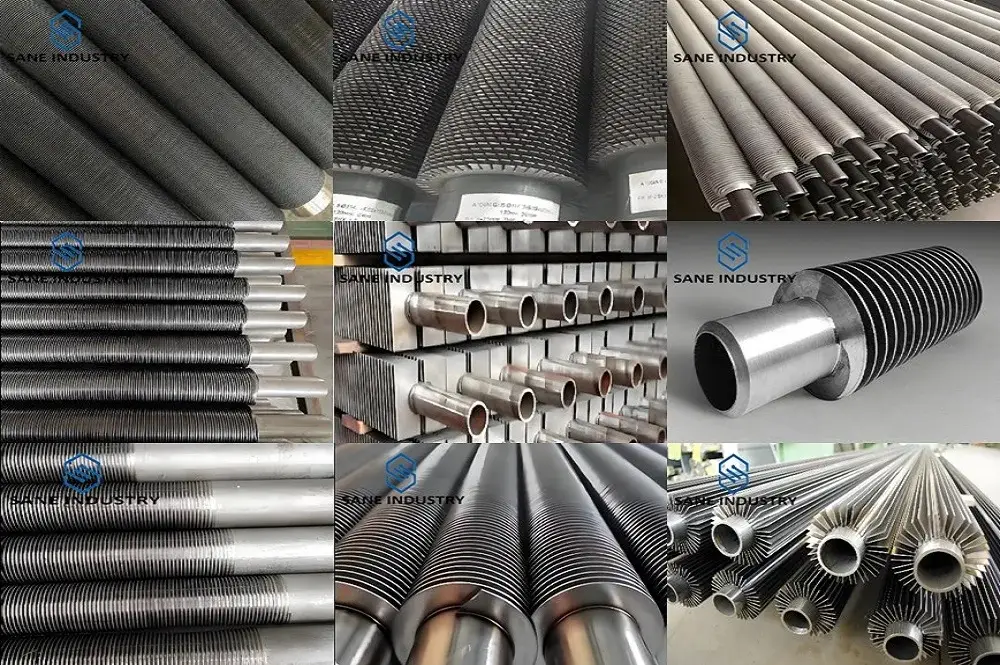

Types of Finned Tubes
- Classification by Manufacturing Process
| Type | Structure | Materials | Manufacturing Process | Thermal Efficiency | Examples |

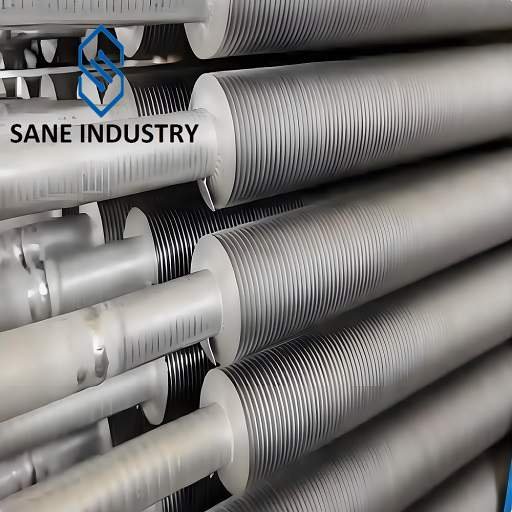

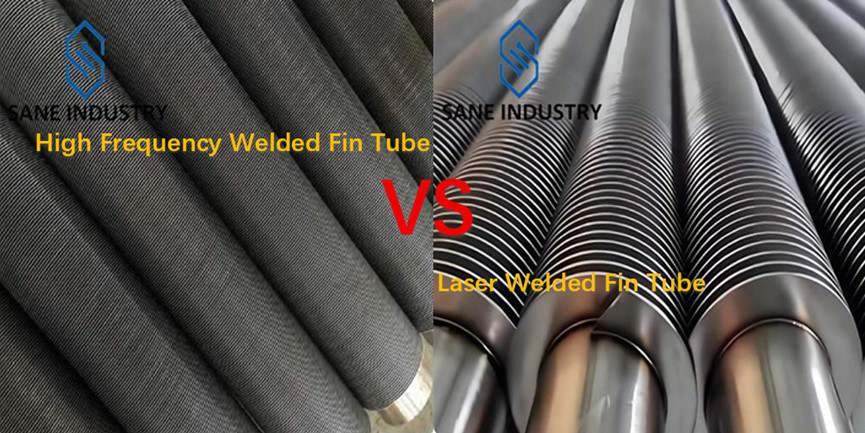

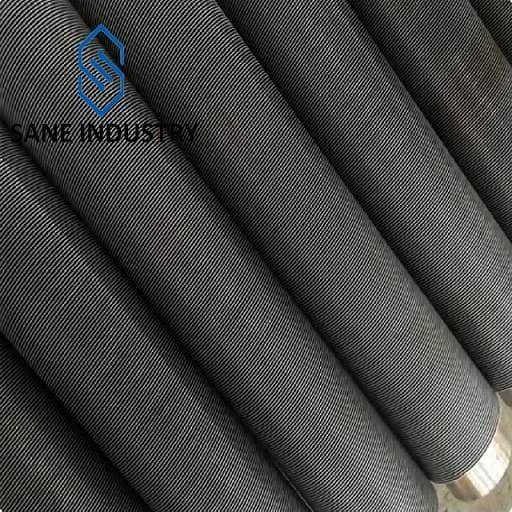

| Welded Fin Tubes | Fins attached to the base tubes via welding | CS SS | High-frequency welding(HFW) Medium frequency welding Laser welding | High (disrupts thermal boundary layers) | HFW Serrated Finned Tubes Longitudinal Finned Tubes H Type Finned Tubes Laser Welded Finned Tubes |
| Embedded Fin Tubes | Fins mechanically bonded into grooves on the tube surface | Aluminum copper | Groove machining + fin insertion | Moderate (depends on bond quality) | G Type Embedded Finned Tube |
| Extruded Fin Tubes | Fins formed by extruding the base tube material into fin shapes | Aluminum copper | Cold extrusion | High (seamless fin-tube bond) | Extruded Finned Tubes Integral Low Finned Tubes Integral High Finned Tubes |
| Tension-Wound Fin Tubes | Fins mechanically wrapped around a base tube | Aluminum copper | Tension-Wound | Moderate (depends on bond quality) | L, LL, KL-Foot Fin Type Finned Tubes |
- Classification by Fin Shape
- Straight Fin Tubes: The most widely used basic type, featuring simple flat plates uniformly distributed on the base tube surface. They are low-cost to manufacture and easy to clean, with uniformly extended heat transfer area and relatively low airflow resistance, making them suitable for heat exchange scenarios with medium to low flow rates and clean media.
- Corrugated Fin Tubes: Metal sheets are pressed into wavy patterns, increasing the heat transfer area by about 15%-20% compared to straight fins with the same material usage. The wavy structure disrupts the fluid boundary layer, enhances turbulence, and improves the heat transfer coefficient, though with slightly higher airflow resistance than straight fins.
- Serrated Fin Tubes: Based on straight fins, these feature intermittent serrated notches, combining extended heat transfer area with enhanced disturbance. The vortices formed at the notches effectively reduce the thermal boundary layer, offering better heat transfer performance than corrugated fins but with correspondingly increased resistance.
- Spiral Fin Tubes: These enhance heat transfer with spiral-shaped fins, providing heat transfer areas several to dozens of times that of bare tubes. Manufacturing processes include high-frequency resistance welding, brazing, and roll forming, with integral spiral fin tubes using hot rolling to achieve a one-piece structure that extends service life by more than three times.
- The Use of Finned Tubes
- Industrial Heat Exchangers
Shell-and-Tube Heat Exchangers: Widely used in refineries and chemical plants for gas-liquid or liquid-liquid heat exchange, particularly in processes requiring corrosion resistance or high-temperature tolerance.
Waste Heat Recovery Systems: Integrated into boilers, furnaces, and kilns to capture and reuse exhaust heat, improving energy efficiency in industries like metallurgy and cement production.
- Air-Cooling Systems
Power Plant Cooling: Deployed in air-cooled condensers (ACCs) to replace water-cooled systems in arid regions, reducing water consumption while maintaining thermal performance.
Petrochemical Facilities: Utilized in air-cooled heat exchangers for condensing hydrocarbons or cooling process fluids, with elliptical finned tubes offering lower air-side resistance compared to circular designs.
- Chemical and Refining Processes
Cracking Furnaces: Applied in ethylene production to enhance heat transfer efficiency between combustion gases and reactor tubes.
Desulfurization Units: T-type finned tubes improve reboiler performance in sulfur recovery systems by increasing turbulence and heat transfer rates.
- HVAC and Refrigeration
Condensers/Evaporators: Optimize heat exchange between refrigerants and air in commercial HVAC systems, reducing energy consumption.
Radiators: Aluminum-finned tubes are common in automotive radiators for engine cooling due to their lightweight and high thermal conductivity.
- Emerging Applications
Elliptical Finned Tubes: Gaining traction in European industries for air-cooled exchangers, offering superior aerodynamic performance over traditional circular tubes.
Advanced Fin Designs: H-type and closed finned tubes are adopted for specialized applications requiring ultra-high heat transfer coefficients or reduced fouling.
- Advantages & Disadvantages of Finned Tubes
Advantages
- Enhanced Heat Transfer Efficiency
The finned structure significantly expands surface area, enabling rapid heat exchange and superior thermal conductivity.
High thermal performance allows efficient heat dissipation even in low-temperature conditions.
- Compact and Space-Saving Design
Occupies minimal space compared to traditional heat exchangers, ideal for confined industrial or workshop environments.
- Corrosion and Pressure Resistance
Aluminum or steel-based variants exhibit excellent corrosion resistance, ensuring durability in humid or chemically aggressive environments.
Robust construction supports high-pressure applications.
- Versatility and Adaptability
Compatible with diverse media (liquids, gases) and operational conditions (high temperature/pressure).
Suitable for combined use with other heat exchange components to optimize system performance.
- Low Maintenance and Easy Installation
Lightweight materials and modular designs simplify installation and relocation.
Detachable fins facilitate cleaning and maintenance without disassembling the entire system.
Disadvantages
- High Manufacturing and Maintenance Costs
Complex finned structures and precision machining increase production costs.
Regular cleaning and anti-corrosion treatments are required to maintain efficiency, adding to operational expenses.
- Environmental Sensitivity
Dust accumulation on fins reduces heat transfer efficiency, necessitating frequent cleaning in polluted environments.
Performance may degrade under extreme flow velocities or poor air circulation.
- Noise Generation
High-speed airflow through fins can generate noticeable noise during operation, impacting user comfort.
- Material Limitations
Aluminum fins, while lightweight, may lack the mechanical strength of steel in high-stress scenarios.
In conclusion, finned tubes, with their 3–10x enhanced thermal efficiency through expanded surface area, offer versatile solutions across industries. By integrating corrosion-resistant materials and adaptive geometries, they balance compactness and durability in applications like refinery heat exchangers and HVAC systems. With continuous innovations in fin design and material engineering, they remain pivotal for sustainable, energy-efficient thermal management worldwide.
