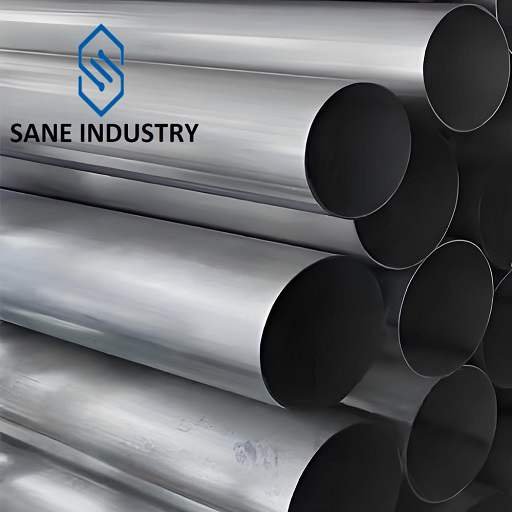

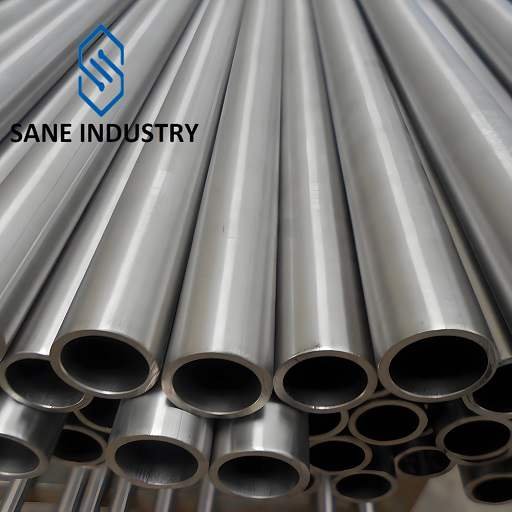

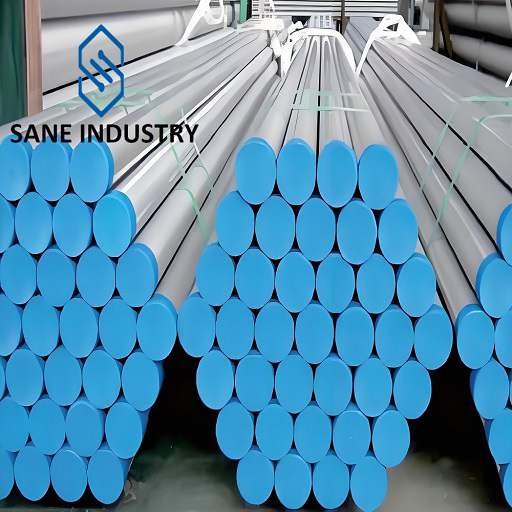

Nickel Alloy Pipes

What is A Nickel Alloy Pipe

Nickel alloy pipe‌s are high-performance tubular products composed primarily of ‌nickel (≥50wt%)‌ with strategic additions of alloying elements such as chromium (Cr), molybdenum (Mo), iron (Fe), niobium (Nb), and copper (Cu). Designed for extreme industrial environments, these alloys fall under the ‌superalloy‌ category due to their exceptional resistance to oxidation, corrosion, and mechanical degradation at elevated temperatures (typically ≥540°C).

Types of Nickel Alloy Pipes

1. ‌Based on material grades‌
   • ‌Monel® Series‌ (e.g., Monel 400, UNS N04400): Nickel-copper alloys with superior resistance to seawater, hydrofluoric acid, and alkaline environments.
   • ‌Incoloy® Series‌ (e.g., Incoloy 800/825, UNS N08800/N08825): Nickel-iron-chromium alloys optimized for moderate temperatures and sulfur-rich environments.
   • ‌Hastelloy® Series‌ (e.g., Hastelloy C-276, UNS N10276): Nickel-chromium-molybdenum-tungsten alloys for extreme corrosion resistance in oxidizing and reducing media.
   • ‌Inconel® Series‌ (e.g., Inconel 600/625, UNS N06600/N06625): Nickel-chromium alloys with exceptional high-temperature strength and oxidation resistance.
2. ‌Based on manufacturing process‌
   • seamless nickel alloy pipe: ideal for high-pressure applications
   • welding carbon steel pipe: ERW carbon steel pipes, LSAW carbon steel pipes, SSAW carbon steel pipes, suitable for low-to-medium pressure uses.

What are the Advantages of Nickel Alloy Pipes

1. ‌Superior Corrosion Resistance‌
   Nickel alloy pipes excel in aggressive environments, resisting acids (e.g., sulfuric, hydrochloric), alkalis, seawater, and sulfides. Alloys like ‌Hastelloy C-276‌ (UNS N10276) withstand both oxidizing and reducing media, outperforming stainless steel and carbon steel in chemical processing plants.

2. ‌High-Temperature Stability‌
   Retain strength and oxidation resistance at extreme temperatures (up to 1,200°C/2,192°F). ‌Inconel 625‌ (UNS N06625) is widely used in aerospace exhaust systems and gas turbines due to its creep resistance.

3. ‌Cryogenic Performance‌
   Maintain ductility and toughness in subzero conditions. Alloys like ‌Nickel 201‌ (UNS N02201) are ideal for LNG storage and cryogenic fluid transport.

4. ‌Mechanical Durability‌
   High tensile strength, fatigue resistance, and impact toughness ensure reliability in high-pressure oil and gas pipelines or nuclear reactor coolant systems.

5. ‌Long Service Life‌
   Reduced maintenance and replacement costs in harsh environments, offsetting higher upfront material expenses. For example, ‌Monel 400‌ (UNS N04400) pipes last decades in marine applications.

6. ‌Versatility‌
   Customizable compositions (e.g., adding molybdenum for pitting resistance or cobalt for wear resistance) cater to niche industrial needs.

What are the Disadvantages of Nickel Alloy Pipes

1. ‌High Material Cost‌
   Nickel is a premium material, making these pipes 3–10 times more expensive than carbon steel or stainless steel.

2. ‌Complex Fabrication‌
   Nickel alloys are hard to machine and weld due to work hardening and sensitivity to contamination. Specialized techniques (e.g., TIG welding with argon shielding) and post-weld heat treatment are often required, increasing production time and costs.

3. ‌Heavier Weight‌
   Higher density compared to aluminum or titanium alloys can be a drawback in aerospace or mobile equipment where weight reduction is critical.

4. ‌Limited Availability‌
   Certain grades (e.g., ‌Incoloy 25-6HN‌) have long lead times due to specialized manufacturing processes and restricted global suppliers.

5. ‌Galvanic Corrosion Risk‌
   When connected to less noble metals (e.g., carbon steel), nickel alloys may accelerate galvanic corrosion, requiring insulation or coatings.

6. ‌Thermal Expansion Challenges‌
   Higher thermal expansion rates than steel can complicate system design in applications with rapid temperature cycling (e.g., heat exchangers).

How are Nickel Alloy Pipes Made

1. ‌Material Preparation‌

   • Nickel (50–99%) and alloying elements (Cr, Mo, Fe, Cu) are melted in vacuum induction furnaces or electric arc furnaces to minimize impurities.

2. ‌Forming‌

   • ‌Seamless Pipes‌: Hot extrusion or rotary piercing shapes heated nickel alloy billets into hollow shells, followed by cold pilgering for precise dimensions.
   • ‌Welded Pipes‌: Sheets/plates are rolled and welded via TIG (GTAW) or laser welding to avoid contamination.

3. ‌Heat Treatment‌

   • Solution annealing (1000–1200°C) or aging enhances corrosion resistance, ductility, and stress relief.

4. ‌Machining & Finishing‌

   • Cold drawing or grinding ensures tight tolerances; surfaces are polished or pickled to remove oxides.

5. ‌Testing‌

   • Rigorous NDT (radiography, PMI) and corrosion tests (ASTM G48) validate chemical stability and weld integrity.

Applications of Nickel Alloy Pipes

Nickel alloy pipes are widely used in:

• ‌Oil & Gas‌: Downhole components, pipelines for sour gas (high H₂S/CO₂).
• ‌Chemical Processing‌: Reactors, heat exchangers, and piping for aggressive acids.
• ‌Aerospace‌: Exhaust systems, fuel lines, and turbine components.
• ‌Nuclear Power‌: Coolant systems and radioactive waste handling.
• ‌Renewable Energy‌: Geothermal and hydrogen production infrastructure.

How to Select Nickel Alloy Pipes Correctly

1. ‌Define operating conditions‌ (temperature, pressure, media).
2. ‌Shortlist alloys‌ meeting mechanical/chemical criteria.
3. ‌Verify compliance‌ with industry-specific standards.
4. ‌Evaluate manufacturing feasibility‌ (welding, forming).
5. ‌Optimize cost-performance ratio‌ based on lifecycle analysis.

Sizes and Materials of Our Nickel Alloy Pipes

For other customized requirements, please contact us. We can also provide nickel alloy tube bending services.

What is the Price of Nickel Alloy Pipes

Please contact our sales manager Allen@sanesteel.com

Why Choose Us

• a 16-year nickel alloy pipe supplier. We are experts.
• solutions for all your needs
• the highest product quality
• the low lead times
• excellent customer service
